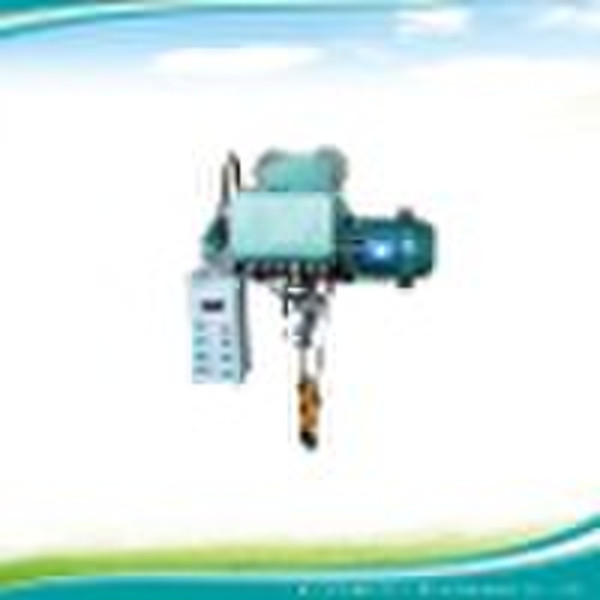

electric wire rope hoist with overload limiter

Model CD1, MD1 Wire Rope Electric Hoist is a small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and warm cranes. With slight modification, it can also be used as winch. It is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions. Model CD1 Electric Hoist has only one normal speed, which can satisfy normal application. Model MD1 Electric Hoist provides two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools, etc. modelCD1MD1 rope electric hoistLifting weight (tons)0.5123510Lifting height (m)6-126-306-306-306-306-30Hoisting speed (m/min)CD18 MD1 8/0.8CD17Speed (m/PTS.)20Wire rope specifications(GB359-646x37+1Duplicate orbital modelGB706-6516-28b16-28b20a-32c20a-32c25a-63c25a-63cRing rail minimum radius (m)1.51.5-3.52-42-42-43-7.2Lifting motormodelZD21-4ZD22-4ZD31-4ZD32-4ZD41-4ZD51-4Rated power (kw)0.81.534.57.513The rated speed (RPM)138013801380138014001400Rated current (Ann)2.2471016.528Running motormodelZDY11-4ZDY11-4ZDY12-4ZDY12-4ZDY21-4ZDY21-4Rated power (kw)0.20.20.40.40.80.8X2The rated speed (RPM)138013801380138013801380Rated current (Ann)0.70.71.31.32.22.2X2Self-reverence (kg)135-195180-255250-360320-440590-800820-1125
